Description
The ALFA A1945 Black Edition is designed for those who need industrial precision with a creative soul. An intelligent machine capable of adapting its stitch to any material (from the most rebellious denim to the finest fabrics) while always maintaining a firm, clean, and quiet seam. Its optimized feed, high-torque motor, and ability to work multiple layers without adjustments make every project a smooth and professional flow. A robust, modern ally ready to perform day after day.
FOR MORE INFORMATION, WRITE TO US AT TEAYUDAMOS@alfahogar.mom
YOUR ALFA IN DETAIL
Browse through the different sections to learn about your machine in depth: photos, technical features, video tutorials, etc.
IN DETAIL
FEATURES
FEATURES

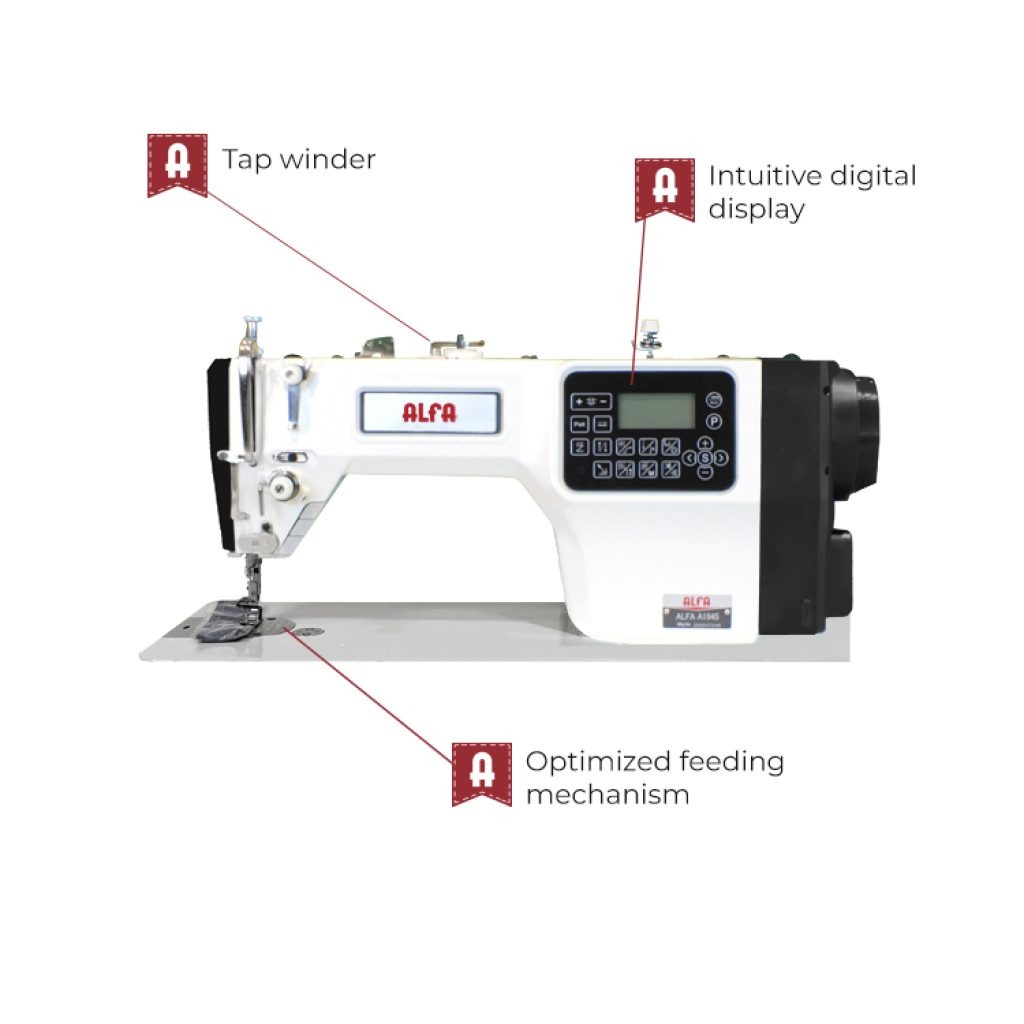

- Optimized feeding mechanism: no need to change the needle plate.
- Greater presser foot height.
- High-torque motor: high penetration force (up to 130 A4 sheets).
- Improved thread take-up system: low tension and fewer wrinkles on fine materials.

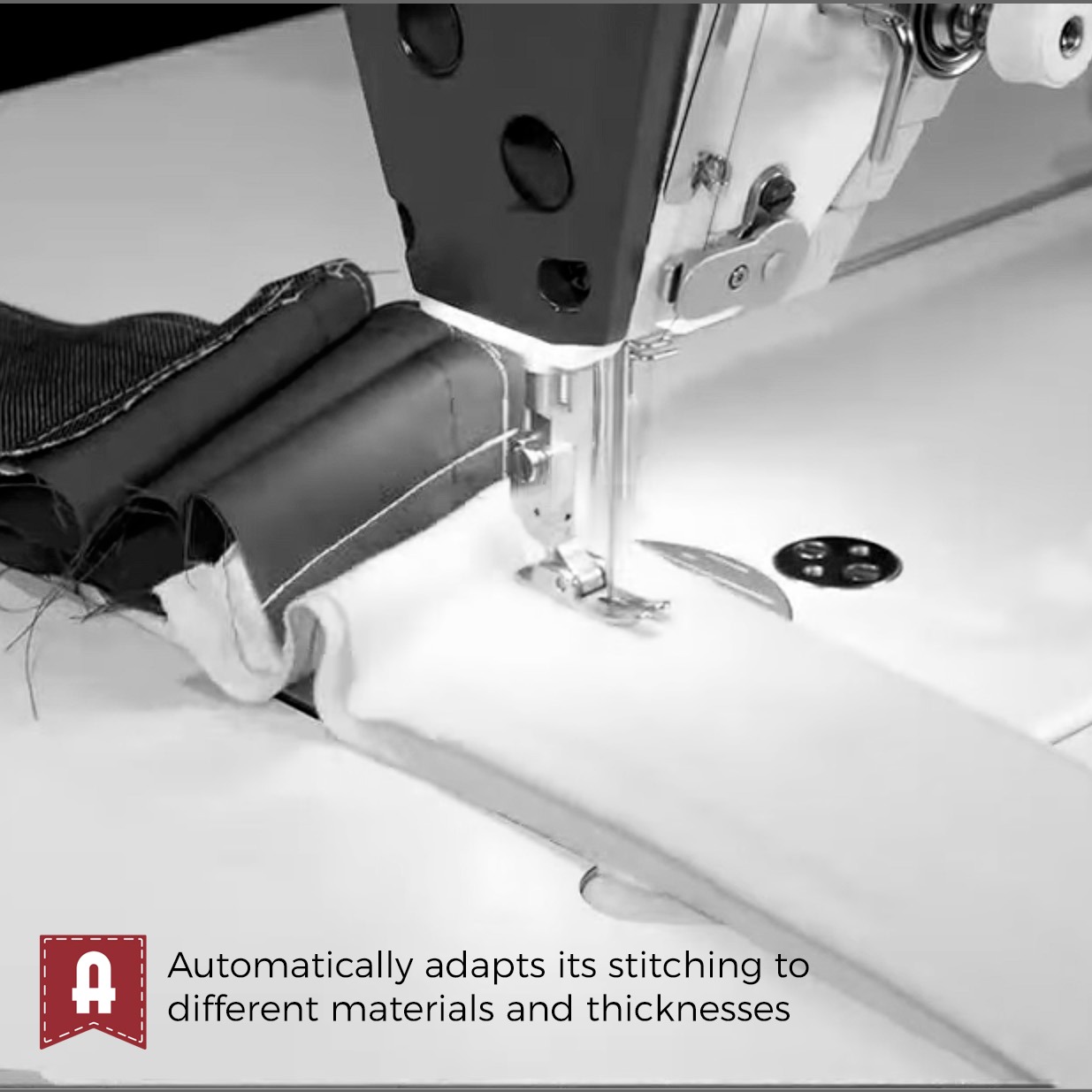

- Sews different materials without adjustments (heavy, light, or elastic).
- Maximum speed: 6,000 ppm; recommended: 4,500 ppm.
- Capable of sewing 10 layers of denim + copper plate.
- Precise stitch length up to 0.1 mm, with lock.
OTHER FEATURES
- Low-consumption servo (stepper) main motor and programming panel.
- Automatic thread trimming and presser foot lift.
- Silent reverse sewing, high precision, and uniform stitches.
- Speed range: 100-6,000 ppm.
- Maximum stitch length: 5 mm.
- Presser foot lift range: 5.5 – 15 mm.
- Stepper motor feed with silent backtacking.

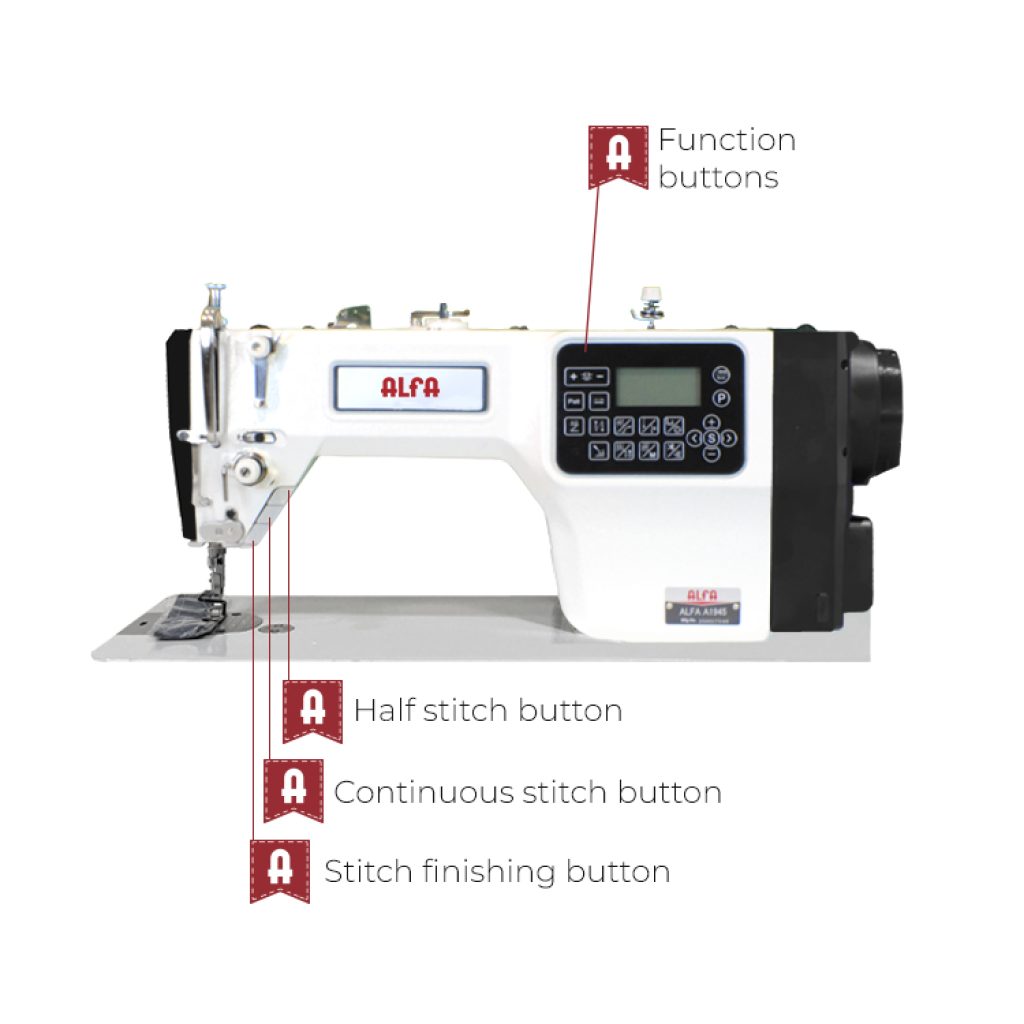

- ½ stitch, 1 stitch and backtacking buttons.
- Button to activate/deactivate automatic presser foot lift.
- Built-in bobbin winder.
- Voice guide in 8 languages (including Spanish, Portuguese, and English).
- LED light with different intensities.
- USB port output for charging your cell phone or connecting an auxiliary lamp.
TECHNICAL DATA
- Voltage: 220V
- Frequency: 50/60 Hz
- Power: 550 W
- Net weight: 38.5 kg
- Total weight: 46 kg
ACCESSORIES INCLUDED

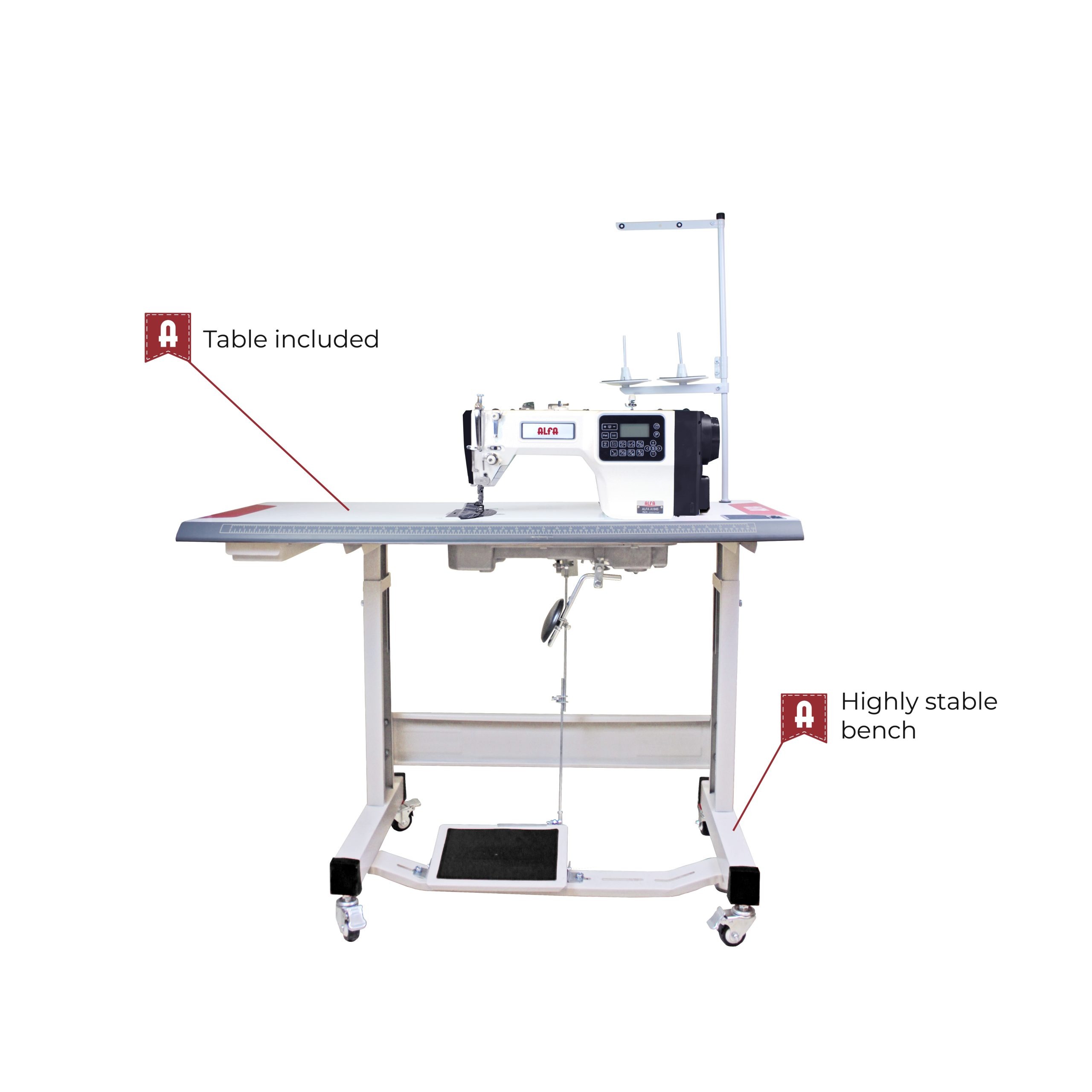

- Functional table with measurements in meters and inches.

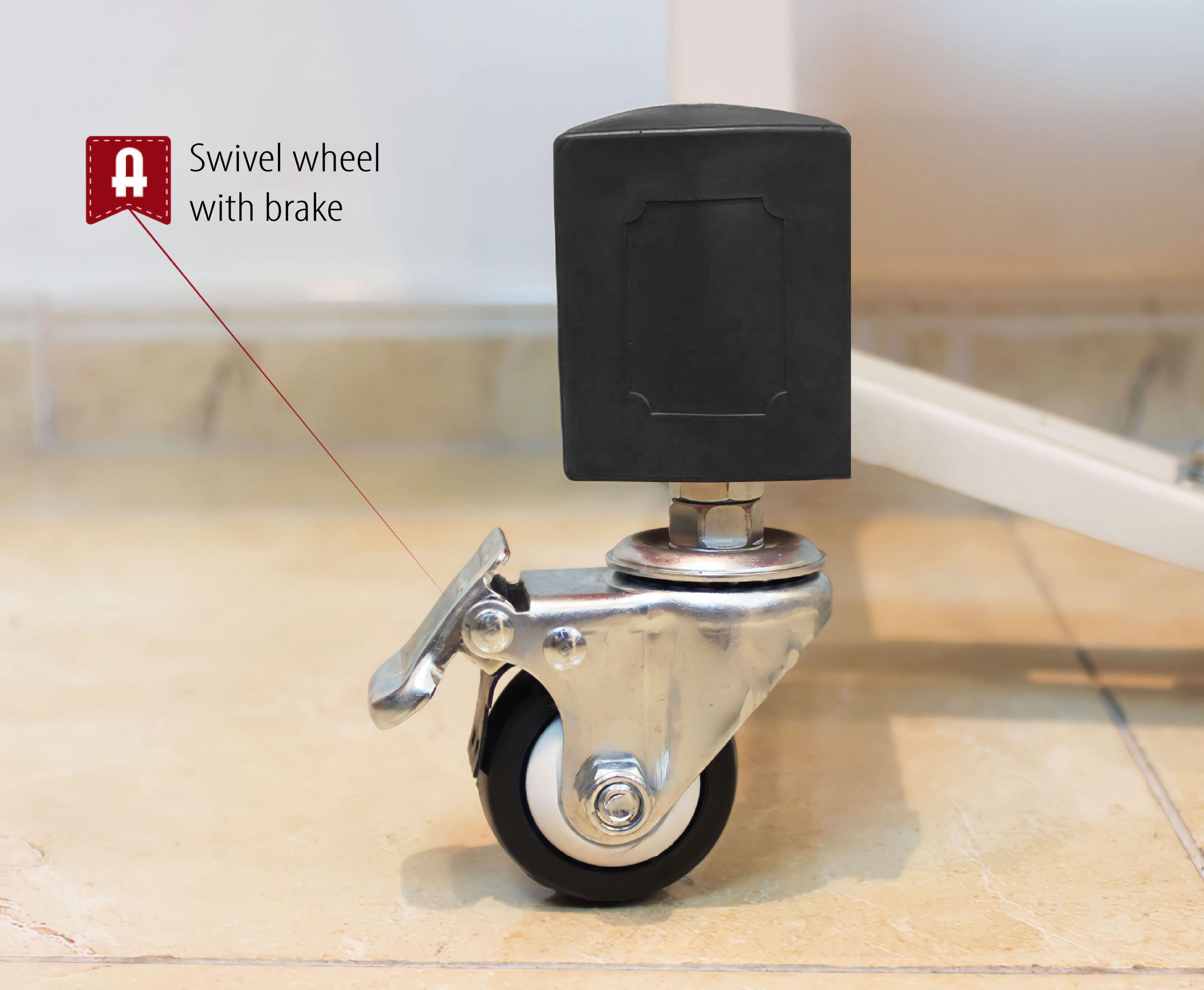

- Workbench with wheels and brakes.
- Hinges and rubber supports for connecting the machine and tabletop.
- Metal oil pan.
- Rigid antenna with cone holder.
- Pedal, knee pad, and pedal pull assembly.
- Protective cover.
- Power cord.
- Tools and consumables:
- 3 screwdrivers (large, medium, and small).
- Taps.
- 1L oil.
- Needles with DBX1 system: 11# – 18#
